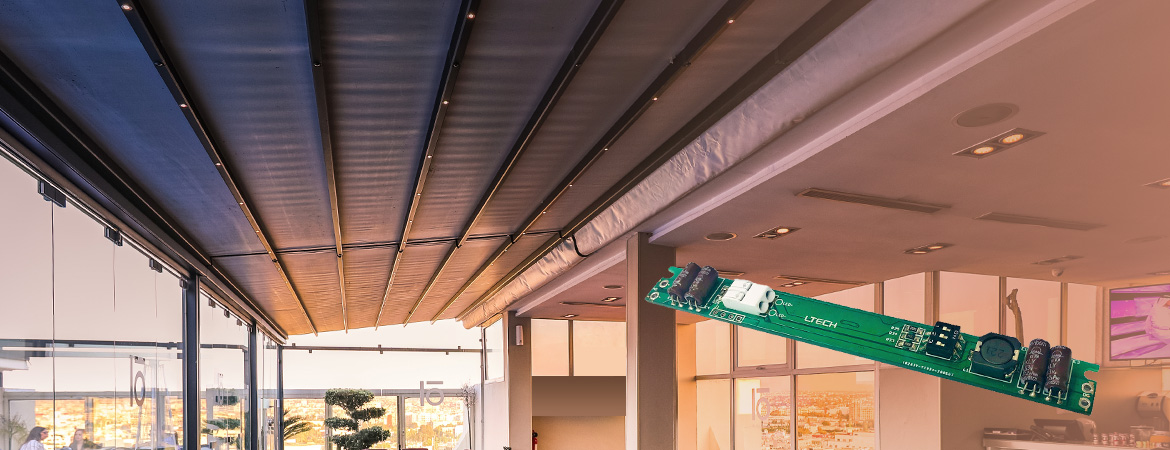

MT-100-400-D1A1

  • Mô tả chi tiết
  • Video
  • Download
Dimming Interface: 0-10V/1-10V
Input Voltage: 48Vdc±5% (No polarity)
Efficiency: 92%
Output Voltage: 10~42Vdc
Output Current: 100-400mA
Output Power: 1W-16.8W
Dimming Range: 0~100%,down to 1%
Certification: CE,ROHS,FCC
Warranty: 3 years
Sec. output:
Pout(Max.) Vout(DC) Constant lout(DC)
1-4.2W 10-42V 100mA
1.5-6.3W 10-42V 150mA
2-8.4W 10-42V 200mA
2.5-10.5W 10-42V 250mA
3-12.6W 10-42V 300mA
3.5-14.7W 10-42V 350mA
4-16.8W 10-42V 400mA
